Macula and Fovea: Zones and High-Yield Facts
Master macula and fovea anatomy: concentric zones, FAZ, and the board exam facts every eye care trainee must know.
Which retinal region is specialized for the highest visual acuity?
The Macula and Fovea in 30 Seconds
The macula is the central retina responsible for high-acuity, color vision, and its center, the foveola at its center, contains the highest cone density in the eye. Exams test this region heavily because its unique layered anatomy, vascular pattern, and pigmentation directly explain why central vision fails first in so many retinal and neuro-ophthalmic diseases. Board questions love the concentric zone nesting and the "no rods, no inner layers" facts.
Fovea vs Macula: Quick Answer
- The macula and fovea are not the same structure. The macula is the larger central retinal region, roughly 5 to 6 mm across. The fovea is a smaller depression, about 1.5 mm, sitting at the macula's center.
- The fovea is part of the macula, not separate from it. Every fovea sits within a macula, but most of the macula lies outside the fovea.
- Rods disappear entirely only at the foveola, the floor of the fovea, not across the fovea as a whole.
- For exam purposes: macula is the whole central zone, fovea is the depression at its center, and foveola is the rod-free floor of that depression.

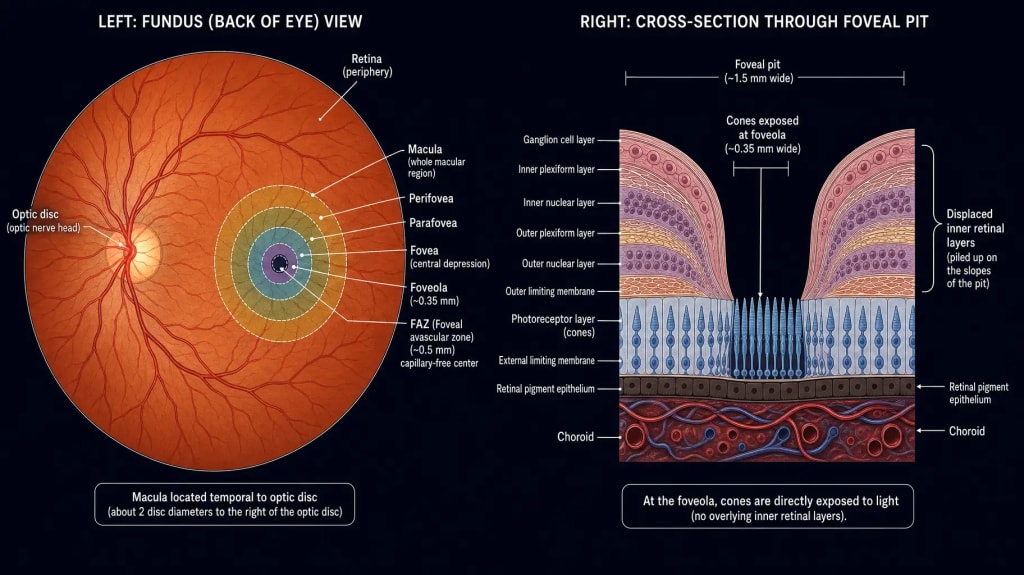

The Central Zones (Outer to Inner)
- Macula: clinically defined region centered on the fovea, roughly 5 to 6 mm in diameter, containing xanthophyll pigment and two or more ganglion cell layers.
- Perifovea: outermost ring of the macula, lowest cone density of the central zones, still contains rods.
- Parafovea: ring just inside the perifovea, has the thickest inner nuclear and ganglion cell layers in the retina.
- Fovea: central depression about 1.5 mm in diameter, rod-free centrally, cone-dense, exam focus for acuity physiology.
- Foveola: floor of the foveal pit, about 0.35 mm in diameter, composed entirely of cones with no rods and no inner retinal layers, so light strikes cones directly.
- Foveal avascular zone (FAZ): capillary-free area centered on the foveola, roughly 0.5 mm in diameter, nourished only by the choriocapillaris.
4 Facts Exams Always Ask
- The foveola contains only cones, no rods, giving it the highest visual acuity in the retina.
- At the center of the fovea, the foveola lacks inner retinal layers (ganglion cells, inner nuclear layer and nerve fiber layer are displaced laterally), so light reaches cones with minimal scatter.
- The FAZ has no retinal capillaries. Its oxygen and nutrient supply comes entirely from the choroid, which is why foveal ischemia is so visually devastating.
- Macular xanthophyll (lutein and zeaxanthin) gives the macula its yellow color and filters short wavelength light, protecting the cone-dense center.
- The foveola is responsible for fixation. Loss of foveola function causes loss of central fixation and reading vision.
- The cherry-red spot seen in central retinal artery occlusion appears because the fovea is nourished by the choroid and retains its color while the surrounding ischemic inner retina turns pale and opaque.
The Classic Trap
The most common exam trap is treating macula, fovea, and foveola as interchangeable terms. Candidates lose points by assuming the entire macula has the fovea's rod-free, layer-thinned architecture. In fact only the foveola is truly rod-free and depleted of inner layers. The macula as a whole still contains rods and full retinal lamination outside its central pit, and the zones thin progressively only as you move from perifovea toward the foveola.
Clinical Pearl
The FAZ is the anatomic reason OCT angiography is read the way it is. Because this zone is normally capillary-free, enlargement or distortion of the FAZ on OCT-A may indicate retinal capillary nonperfusion, particularly in diabetic retinopathy and retinal vein occlusion, sometimes before visible clinical signs appear.
Checkpoint 1
The fovea contains the highest density of which photoreceptor type?
Checkpoint 2
Which statement best describes the foveola?
A 68-year-old presents with sudden painless central vision loss in one eye. Fundus exam shows diffuse retinal whitening with a sharply demarcated red spot at the center of the macula. Visual acuity is severely reduced, but peripheral fields are intact.
The retinal pigment epithelium performs which key anatomic support function?
Sources & Reviewer Info
Diagram created with AI image generation, clinically reviewed for accuracy.
References
- American Academy of Ophthalmology. Basic and Clinical Science Course, Section 2: Fundamentals and Principles of Ophthalmology (Ocular Anatomy)
- Snell RS, Lemp MA. Clinical Anatomy of the Eye
- American Academy of Ophthalmology. EyeWiki
