Posterior Chamber Anatomy Explained

Master posterior chamber anatomy: aqueous production, zonules, and pupillary block, the board exam facts every eye care professional must know.

Reviewed for accuracyJuly 27, 20263 min read

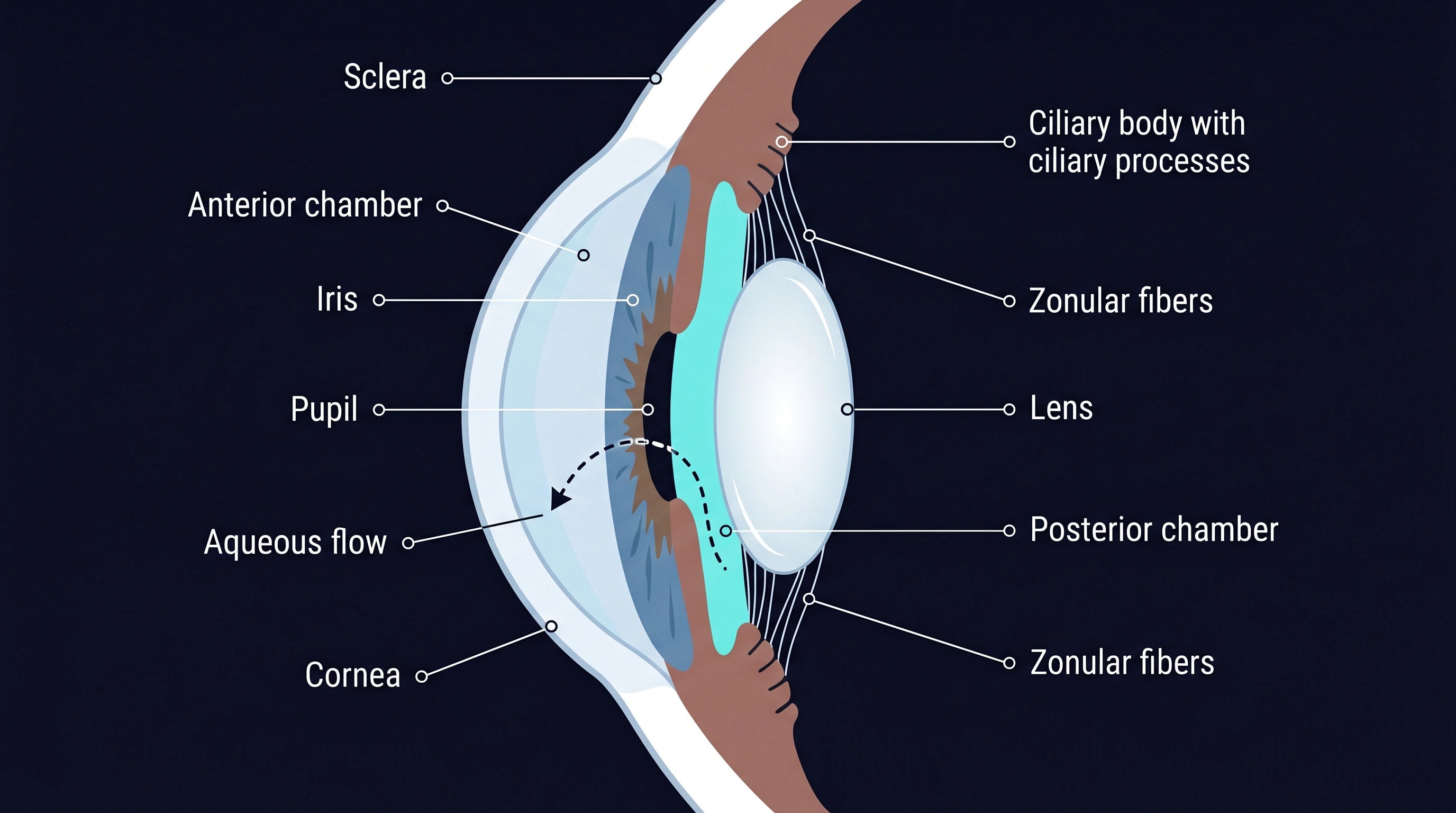

Labelled cross-section of the anterior eye showing the posterior chamber behind the iris, with the ciliary body, zonular fibers, lens, and aqueous flow through the pupil.

Warm-up

The posterior chamber is the space between the:

Lesson

The Posterior Chamber in 30 Seconds

The posterior chamber is the aqueous-filled space bounded anteriorly by the posterior iris, peripherally by the ciliary body, and posteriorly by the anterior lens surface, zonular fibers and anterior hyaloid face in the peripheral chamber. Aqueous humor is secreted into it by the ciliary processes, not into the anterior chamber. Every angle closure, IOL calculation, and zonular pathology question traces back to this space.

Key Structures or Components

Ciliary body: nonpigmented epithelium secretes aqueous via active transport, diffusion, and ultrafiltration. Exam relevance: this is the true source of aqueous, a commonly missed fact.
Zonular fibers: suspend the lens equator, transmitting ciliary muscle action to alter lens shape. Exam relevance: zonular laxity or dialysis causes phacodonesis and lens subluxation.
Posterior iris surface: forms the anterior wall of the chamber and carries the dilator muscle. Exam relevance: relative pupillary block here creates a pressure gradient between the posterior and anterior chambers, bowing the iris forward.
Anterior lens capsule and hyaloid face: form the posterior boundary of the chamber at the pupil. Exam relevance: distinguishes posterior chamber from the vitreous cavity, a frequent confusion point.
Aqueous flow path: secreted in the posterior chamber, aqueous passes through the pupil into the anterior chamber before reaching the trabecular meshwork.

4 Facts Exams Always Ask

Aqueous humor is produced in the posterior chamber, not the anterior chamber, by the ciliary body's nonpigmented epithelium.
Aqueous formation involves three mechanisms: active secretion (dominant), ultrafiltration, and diffusion.
The posterior chamber is anatomically distinct from the posterior segment. The posterior segment refers to the vitreous cavity and retina, a name that trips up nearly every first-year student.
Relative pupillary block creates a pressure gradient between the posterior and anterior chambers, bowing the iris forward (iris bombe) and narrowing the angle.

The Classic Trap

The most common exam mistake is confusing "posterior chamber" with "posterior segment." Candidates read "posterior" and assume vitreous or retina, then answer questions about aqueous production or lens support incorrectly. The posterior chamber is a small anterior segment structure, not the large cavity behind the lens. Keeping this boundary straight resolves most trick questions on this topic.

Clinical Pearl

In acute angle closure, aqueous cannot pass freely through the pupil and the resulting pressure gradient bows the iris forward, a configuration known as iris bombe. This directly narrows or closes the angle, a mechanism explained by posterior chamber anatomy and relative pupillary block. This is why laser peripheral iridotomy works: it creates an alternate aqueous pathway, bypassing the pupil entirely.

Check yourself

Checkpoint 1

Aqueous humor is produced primarily by the:

Checkpoint 2

Which structure lies immediately behind the iris in the normal phakic eye?

Clinical case

A 68-year-old hyperopic woman presents with sudden eye pain, blurred vision, and a mid-dilated pupil. Slit lamp exam shows a shallow anterior chamber and forward iris bowing. Intraocular pressure is markedly elevated. Gonioscopy is deferred due to corneal edema.

Normal aqueous humor flows from the posterior chamber to the anterior chamber through the:

Explanation

Aqueous is produced in the posterior chamber and then passes through the pupil into the anterior chamber. It ultimately drains through angle pathways.

Case discussion

The forward iris bowing reflects aqueous trapped in the posterior chamber unable to pass through the pupil into the anterior chamber, the mechanism of relative pupillary block. Pressure builds behind the iris, pushing it anteriorly and closing the angle, which explains both the shallow chamber and elevated IOP. This is the anatomic basis for treating the attack with iridotomy rather than simply lowering pressure with drops alone.

Sources & Reviewer Info

Reviewed by Vasilis Inglezis: Optometrist and Ocular Oncology Imaging Specialist, Ocular Oncology Center, Athens, Greece. Last updated July 27, 2026.

Diagram created with AI image generation, clinically reviewed for accuracy.

References

American Academy of Ophthalmology, Basic and Clinical Science Course, Section 2: Fundamentals and Principles of Ophthalmology (Ocular Anatomy)
Snell RS, Lemp MA. Clinical Anatomy of the Eye
American Academy of Ophthalmology, EyeWiki: Ciliary Body and Aqueous Humor Dynamics
