RAPD and the Swinging Flashlight Test
Learn how to detect and interpret a relative afferent pupillary defect, including high-yield RAPD causes and board exam traps.
A relative afferent pupillary defect (RAPD) is best detected using which clinical technique?
Relative Afferent Pupillary Defect in 30 Seconds
A relative afferent pupillary defect is an asymmetric pupillary light response caused by reduced afferent input from one eye. It is also called a Marcus Gunn pupil. The swinging flashlight test identifies the eye with worse retinal or optic nerve function.
What an RAPD Means
An RAPD indicates asymmetric input along the afferent visual pathway from the retina or optic nerve between the two eyes. An RAPD reflects asymmetric retinal ganglion cell or optic nerve function, not reduced visual acuity. A unilateral RAPD does not result from lesions posterior to the optic chiasm, because afferent input from both eyes has already mixed by that point. A dense unilateral cataract or refractive error reduces image quality but does not significantly reduce retinal light detection, so it does not cause a true RAPD.

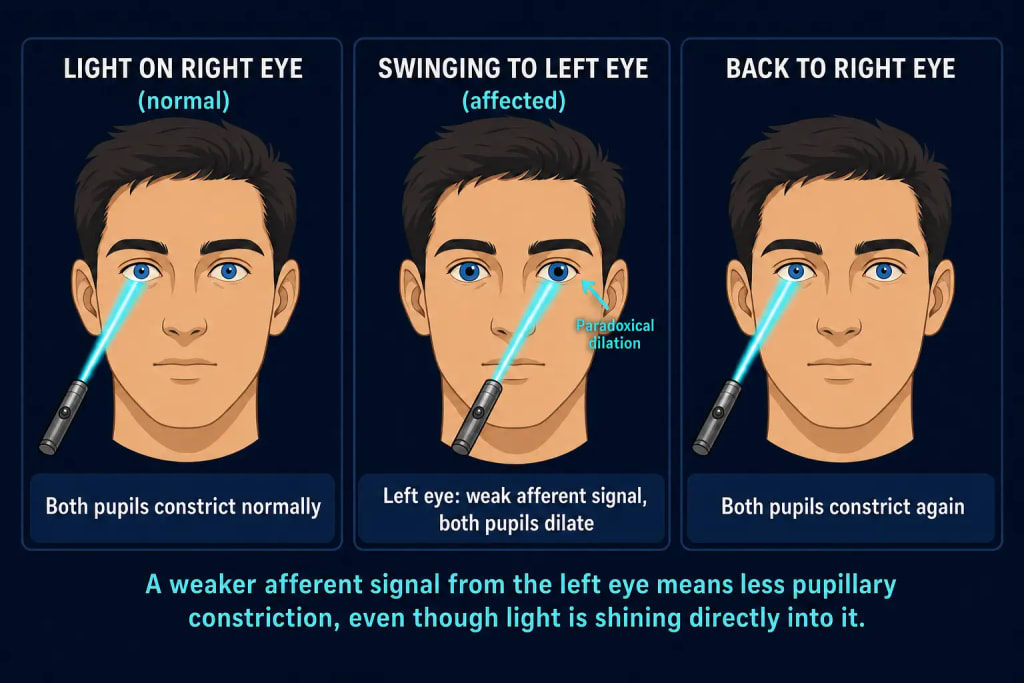

The Swinging Flashlight Test
- Perform the test in a dim room.
- Swing the light evenly between eyes with a consistent pause on each eye.
- Watch the directly illuminated pupil during each swing.
- When the light swings from the normal eye to the affected eye, both pupils paradoxically dilate because the afferent signal decreases.
4 Facts Exams Always Ask
- Classic unilateral causes are optic neuritis, traumatic optic neuropathy, compressive optic neuropathy and ischemic optic neuropathy. Retinal disease usually causes an RAPD only when retinal ganglion cell dysfunction is extensive, such as central retinal artery occlusion or a large retinal detachment.
- Grade RAPD severity with neutral density filters placed before the better eye. The filter density that equalizes the responses estimates the RAPD magnitude.
- Bilateral symmetric disease, such as bilateral optic neuritis of equal severity, produces no RAPD because the afferent defect is not asymmetric.
- RAPD differs from anisocoria. RAPD is a difference in light reactivity, not a difference in resting pupil size.
The Classic Trap
Do not assume that dense cataract or vitreous hemorrhage causes a true RAPD. These media opacities may make the fundus difficult to see but usually preserve sufficient retinal illumination for the pupillary response. Conversely, early optic neuritis may produce a small RAPD with a normal-appearing optic disc and fundus.
Clinical Pearl
An RAPD often provides stronger evidence of unilateral optic nerve dysfunction than visual acuity alone. A patient can have good central acuity yet have an RAPD from asymmetric optic neuropathy with substantial field loss.
Checkpoint 1
A patient claims complete monocular blindness in one eye but has a normal pupillary light reflex and no RAPD. Which test can help confirm a functional (non-organic) cause?
Checkpoint 2
Which clinical feature particularly supports a compressive optic neuropathy rather than a refractive or media problem?
A 27-year-old woman reports painful decreased vision in the left eye for 2 days. Visual acuity is 20/25 OD and 20/60 OS. Color vision is reduced OS. The optic discs appear normal. During the swinging flashlight test, the left pupil dilates slightly when the light moves from right to left.
A unilateral relative afferent pupillary defect is most likely to be present in which of the following conditions?
Sources & Reviewer Info
Diagram created with AI image generation, clinically reviewed for accuracy.
References
- American Academy of Ophthalmology. Basic and Clinical Science Course, Section 5: Neuro-Ophthalmology.
- American Academy of Ophthalmology. EyeWiki. Afferent Pupillary Defect.
- Walsh and Hoyt's Clinical Neuro-Ophthalmology.
