Layers of the Retina: Board Exam Guide
Master the 10 layers of the retina from ILM to RPE, high-yield facts, classic exam traps, and OCT correlations for board prep.
The retinal nerve fiber layer is composed primarily of:
The Layers of the Retina in 30 Seconds
The retina is a 10-layer neurosensory structure that converts light into electrical signals through a strict inner-to-outer processing chain. Its layered architecture explains why specific diseases target specific layers, from glaucoma's nerve fiber loss to age-related macular degeneration's RPE damage. Board exams test this order constantly because OCT interpretation depends on naming each band correctly.

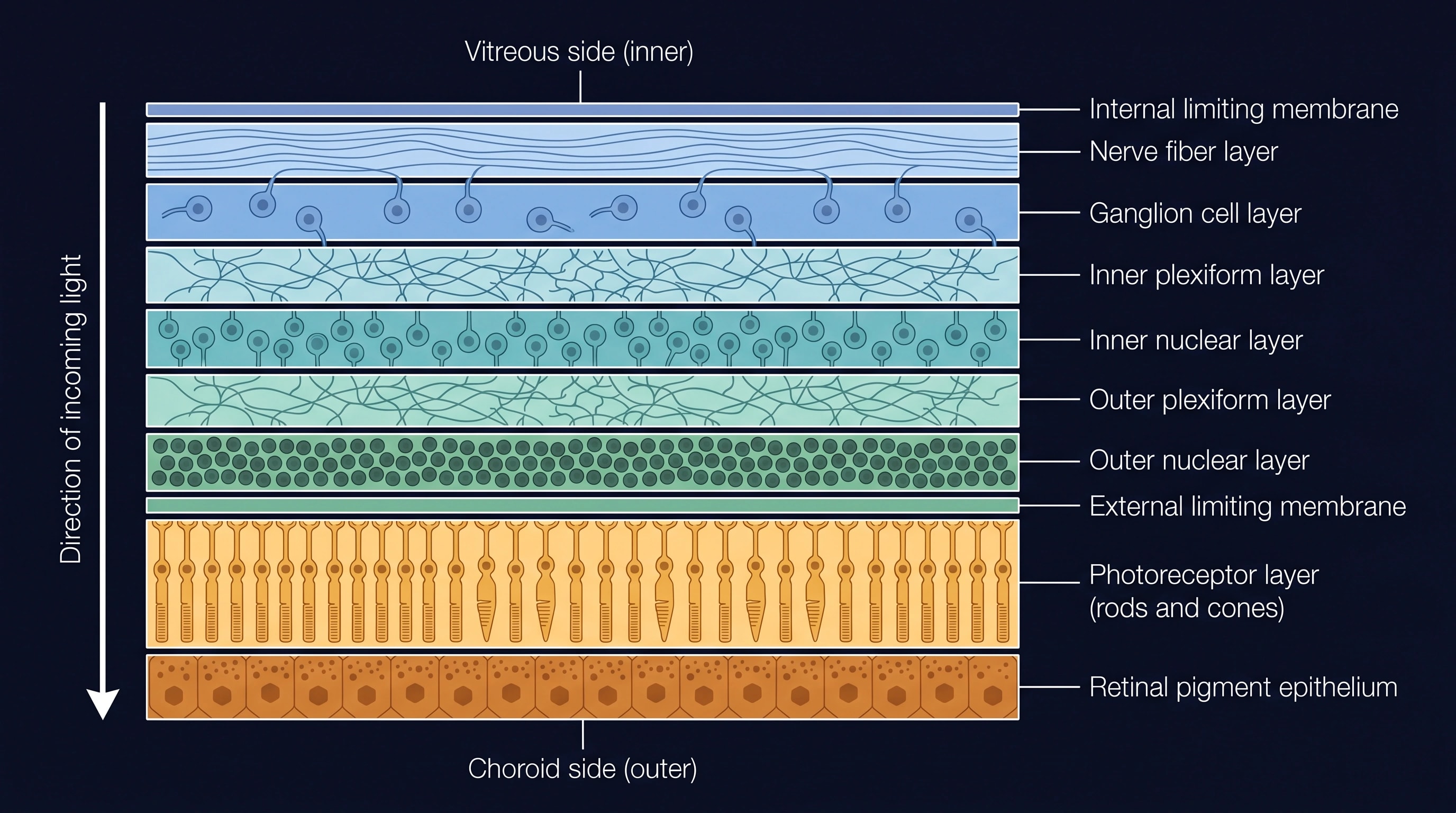

The 10 Layers (Inner to Outer)
- Internal limiting membrane: basement membrane of Müller cells, forms the vitreoretinal interface. Relevant to vitreomacular traction and macular hole staging.
- Nerve fiber layer: unmyelinated ganglion cell axons converging toward the optic disc. Thinned early in glaucoma, tracked by OCT RNFL analysis.
- Ganglion cell layer: ganglion cell bodies, thickest near the fovea's edge. Lost alongside the nerve fiber layer in glaucomatous and compressive optic neuropathy.
- Inner plexiform layer: synapses between bipolar, amacrine and ganglion cells. Involved in DRIL, a poor prognostic OCT sign in diabetic macular edema.
- Inner nuclear layer: cell bodies of bipolar, horizontal, amacrine and Müller cells. Site of cystoid changes in many macular edemas.
- Outer plexiform layer: synapses between photoreceptors and bipolar or horizontal cells. Senile retinoschisis most commonly splits at the outer plexiform layer, though more superficial splitting patterns have also been described.
- Outer nuclear layer: photoreceptor cell bodies (rods and cones). Thinned in outer retinal atrophy and cone dystrophies.
- External limiting membrane: junctional complexes between Müller cells and photoreceptor inner segments, not a true membrane. Its integrity on OCT predicts visual recovery after retinal detachment repair.
- Photoreceptor layer: rod and cone inner and outer segments, the true site of phototransduction. Farthest from incoming light, closest to the RPE.
- Retinal pigment epithelium: single layer of pigmented cells forming the outer blood-retina barrier, phagocytoses shed photoreceptor outer segment discs and supports the visual cycle. Separated from the neurosensory retina in rhegmatogenous retinal detachment.
4 Facts Exams Always Ask
- Light must pass through nearly all inner layers before reaching the photoreceptors, since rods and cones sit second from the outer edge, just inside the RPE.
- The RPE, not the neurosensory retina, stays attached to the choroid in rhegmatogenous retinal detachment. The split occurs between the neurosensory retina and the RPE.
- The nerve fiber layer and ganglion cell layer are the earliest structural casualties in glaucoma, detectable on OCT before visual field loss.
- Senile retinoschisis splits at the outer plexiform layer, distinguishing it from retinal detachment which separates the whole neurosensory retina from the RPE.
- The fovea lacks the ganglion cell layer and inner nuclear layer, allowing light to reach photoreceptors with minimal scatter and enabling maximal visual acuity.
- The optic disc lacks photoreceptors entirely, creating the physiologic blind spot.
- Only the inner retina is supplied by the central retinal artery. The outer retina including photoreceptors and RPE receives nutrition from the choroidal circulation.
The Classic Trap
The most common error is assuming light hits the ganglion cell layer first simply because it is "inner" and closer to the cornea. In reality light must traverse the internal limiting membrane, nerve fiber layer, ganglion cell layer, and both plexiform and nuclear layers before reaching the photoreceptors, which face away from the light source toward the RPE. Candidates get this backward because they equate "inner" with "first stop for light," when it is actually the last stop.
Clinical Pearl
Spectral-domain OCT bands map almost directly onto these histological layers, so recognizing hyperreflective and hyporeflective bands on a scan is really recognizing this list in cross section. A clinician who can name the 10 layers in order can localize pathology on OCT instantly, whether it is DRIL in diabetic macular edema or ellipsoid zone loss in a retinal dystrophy.
Checkpoint 1
The retinal pigment epithelium lies immediately external to the:
Checkpoint 2
The retinal pigment epithelium performs which key anatomic support function?
A 68-year-old presents with painless peripheral field loss. OCT shows a clean split of the retina at one specific plexiform level, with the inner and outer portions bridged by vertical tissue strands, and no separation between photoreceptors and the pigmented layer beneath them.
The outer blood-retinal barrier is formed primarily by tight junctions between:
Sources & Reviewer Info
Diagram created with AI image generation, clinically reviewed for accuracy.
References
- American Academy of Ophthalmology, Basic and Clinical Science Course, Section 2: Fundamentals and Principles of Ophthalmology (Ocular Anatomy)
- Snell RS, Lemp MA. Clinical Anatomy of the Eye
- American Academy of Ophthalmology, EyeWiki: Retina and Senile Retinoschisis
