NPDR Severity and the 4-2-1 Rule
Master nonproliferative diabetic retinopathy grading, the 4-2-1 rule, macular edema separation and high-yield NBEO and OKAP traps.
Which finding is most typical of mild nonproliferative diabetic retinopathy?
Nonproliferative Diabetic Retinopathy in 30 Seconds
Nonproliferative diabetic retinopathy is retinal microvascular disease without neovascularization. Grade it primarily by microaneurysms, intraretinal hemorrhages, venous beading and intraretinal microvascular abnormalities (IRMA). For NBEO and OKAP, recognize the 4-2-1 rule and separate retinopathy severity from diabetic macular edema.
How NPDR Develops
Chronic hyperglycemia causes retinal capillary basement membrane thickening, pericyte loss and microvascular occlusion and leakage. Retinal ischemia leads to capillary closure, increasing intraretinal abnormalities and ultimately stimulating VEGF production. NPDR has no neovascularization. Neovascularization marks the transition to proliferative diabetic retinopathy, or PDR.
The Severity Scale
- Mild NPDR: Microaneurysms only. This is the earliest visible retinopathy grade.
- Moderate NPDR: Any retinal findings more than microaneurysms alone but less than severe NPDR. Findings may include intraretinal hemorrhages, hard exudates, cotton-wool spots or limited IRMA.

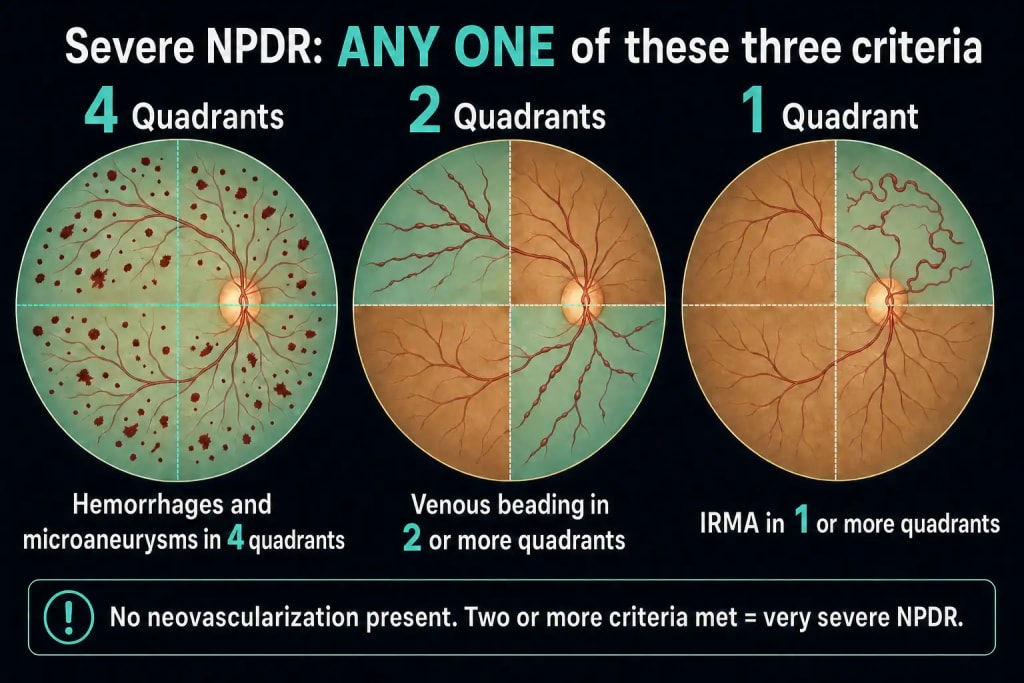

- Severe NPDR: Apply the 4-2-1 rule: hemorrhages and microaneurysms in 4 quadrants, venous beading in at least 2 quadrants or IRMA in 1 or more quadrants. There must be no neovascularization. Very severe NPDR is present when two or more of these criteria are met and carries an even higher risk of progression.
4 Facts Exams Always Ask
- Mild NPDR means microaneurysms only. Moderate NPDR means more than microaneurysms but not enough findings for severe NPDR.
- Severe NPDR reflects extensive retinal nonperfusion and carries approximately a 50 percent risk of progression to PDR within one year, particularly when extensive ischemia is present.
- Diabetic macular edema can occur at any NPDR severity level. Grade macular edema separately from retinopathy severity.
- Typical follow-up is about 12 months for mild NPDR, 6 to 9 months for moderate NPDR and every 2 to 4 months for severe NPDR when diabetic macular edema is absent.
The Classic Trap
Do not call an eye PDR because it has many hemorrhages or macular edema. Hemorrhages, venous beading and IRMA grade NPDR. PDR is defined by retinal neovascularization, at the disc or elsewhere, or by vitreous or preretinal hemorrhage secondary to neovascularization. Iris or angle neovascularization indicates advanced proliferative disease rather than the core grading criterion.
Clinical Pearl
Use the 4-2-1 rule as an ischemia warning sign, not as a treatment label. Severe NPDR may look dramatic without new vessels, yet it needs closer surveillance because progression risk is high. IRMA remain within the retina and do not leak as profusely as neovascularization on fluorescein angiography, since unlike neovascularization, IRMA do not breach the internal limiting membrane. Left untreated, progression to proliferative disease can drive neovascularization of the iris and angle, causing neovascular glaucoma, one reason severe NPDR triggers closer follow-up rather than routine annual exams.
Checkpoint 1
The '4-2-1 rule' is used to identify which stage of diabetic retinopathy?
Checkpoint 2
A patient with severe non-proliferative diabetic retinopathy (NPDR) has retinal findings in all four quadrants including venous beading in two or more quadrants and IRMA in at least one quadrant. According to the modified Airlie House classification, what is the approximate risk of progression to proliferative diabetic retinopathy (PDR) within one year if untreated?
A patient with diabetes has severe intraretinal hemorrhages and microaneurysms meeting the 4-2-1 criterion in all four quadrants. There is no venous beading, IRMA or neovascularization. OCT shows center-involving diabetic macular edema.
Which stage of diabetic retinopathy is most appropriate?
Sources & Reviewer Info
Diagram created with AI image generation, clinically reviewed for accuracy.
References
- American Academy of Ophthalmology. BCSC Section 12: Retina and Vitreous.
- American Academy of Ophthalmology EyeWiki. "Diabetic Retinopathy."
