Glaucoma Diagnosis for NBEO and OKAP
Master glaucoma diagnosis for NBEO and OKAP: IOP, gonioscopy, optic nerve signs, OCT and visual fields integrated the way boards test it.
Which OCT change is most convincing for glaucomatous progression when confirmed on repeat testing?
Glaucoma Diagnosis in 30 Seconds
Glaucoma diagnosis is not a single test result. It requires integration of IOP, angle status, optic nerve appearance, OCT findings and visual field testing into a single clinical picture. Boards test whether you know that any single finding, especially IOP, is insufficient to diagnose or exclude glaucoma.
The Diagnostic Framework
Glaucoma diagnosis rests on structure-function correlation, not any isolated test. IOP measurement establishes the pressure baseline and risk profile. Gonioscopy classifies the angle as open or closed, which determines the differential and treatment path. Optic nerve evaluation looks at the cup to disc ratio, the ISNT rule, disc hemorrhages and neuroretinal rim thinning or notching. OCT quantifies retinal nerve fiber layer (RNFL) and macular ganglion cell-inner plexiform layer (GCIPL) thickness, often flagging damage before a visual field defect appears. Standard automated perimetry confirms functional loss and its pattern. A confident diagnosis comes from these findings agreeing with each other, not from one abnormal number.
The Five Diagnostic Pillars
- IOP measurement: Goldmann applanation tonometry is the gold standard for measuring IOP. Central corneal thickness is measured alongside it because a thinner cornea tends to give a falsely low reading, though the exact magnitude of that effect is not fixed or predictable.
- Gonioscopy: This test classifies the angle as open or closed and differentiates primary from secondary glaucomas. It is essential when angle closure is suspected and before angle-based laser or surgical procedures.
- Optic nerve evaluation: Look at the cup to disc ratio, apply the ISNT rule, and check for disc hemorrhage and focal rim thinning or notching. These clinical signs remain central to diagnosis despite variable interobserver agreement. Pallor disproportionate to cupping should raise concern for a non-glaucomatous cause, see optic atrophy for the full differential.
- OCT: RNFL and GCIPL thinning are quantified relative to normative data. Structural change on OCT frequently precedes a detectable visual field defect.
- Visual fields: Standard automated perimetry, typically the 24-2 pattern, identifies glaucomatous patterns such as arcuate scotoma, nasal step and generalized depression. Reliability indices must be checked before a field is interpreted as valid.
4 Facts Exams Always Ask
- Goldmann applanation tonometry is the gold standard for IOP measurement, and thinner corneas tend to underestimate true IOP.
- Gonioscopy is essential for distinguishing open- from closed-angle glaucoma and should be performed before angle-based laser or surgical interventions.
- OCT structural damage typically appears before a visual field defect becomes detectable on perimetry.
- No single test is diagnostic for glaucoma. Diagnosis depends on agreement between clinical examination, structural testing and functional testing over time.
The Classic Trap
The most common exam mistake is relying on IOP alone to diagnose or exclude glaucoma. Normal-tension glaucoma occurs with IOP consistently within the normal range, so a normal pressure does not rule out disease. Ocular hypertension can exist for years with elevated IOP and no structural or functional damage, so an elevated pressure does not confirm disease either. The diagnosis always requires the full clinical picture across angle, optic nerve, imaging and function.
Clinical Pearl
The structure-function relationship is the highest-yield integration point on boards. OCT often detects RNFL or GCIPL thinning before perimetry shows any defect, a stage called preperimetric glaucoma. A patient with a suspicious disc and abnormal OCT but a normal visual field still needs close monitoring and may represent preperimetric glaucoma, warranting close follow-up or treatment depending on the overall clinical picture and risk of progression.
Checkpoint 1
How does a thin cornea typically affect Goldmann applanation tonometry measurements?
Checkpoint 2
A patient has suspicious optic nerve and OCT changes but normal standard automated perimetry. This situation is most consistent with:
A 58-year-old presents with IOP of 22 mmHg in both eyes, open angles on gonioscopy and a cup to disc ratio of 0.6 in the right eye with focal inferior rim thinning. OCT shows inferior RNFL thinning in the right eye. The 24-2 visual field is full and reliable in both eyes.
Which principle is most important when interpreting glaucoma tests?
Sources & Reviewer Info

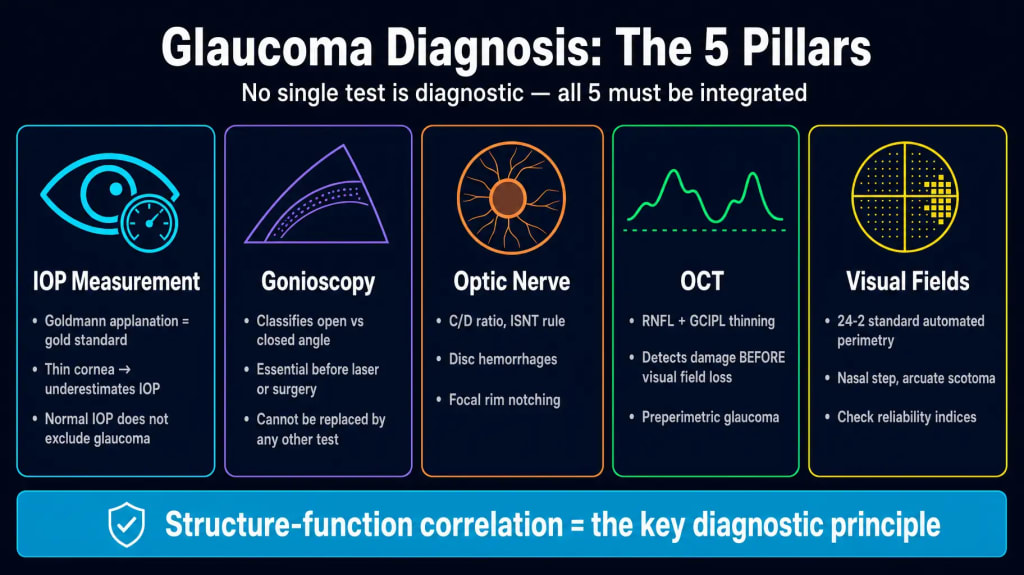

Diagram created with AI image generation, clinically reviewed for accuracy.
References
- American Academy of Ophthalmology. Basic and Clinical Science Course, Section 10: Glaucoma.
- Shields' Textbook of Glaucoma.
- American Academy of Ophthalmology. EyeWiki: Primary Open-Angle Glaucoma.
- American Academy of Ophthalmology. EyeWiki: Gonioscopy.
