Optic Atrophy: Exam Pattern Recognition

Master optic atrophy patterns, timing, RAPD clues, OCT findings, and the signs that distinguish compressive disease from glaucoma.

Reviewed for accuracyJuly 27, 20263 min read

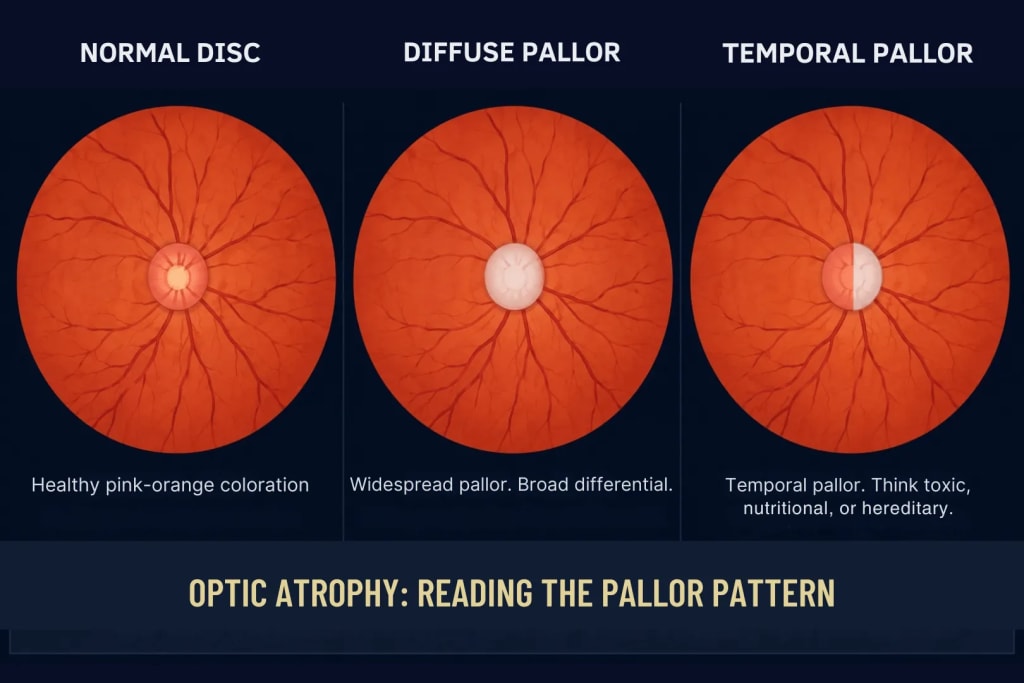

Three-panel diagram of optic disc pallor patterns: a normal disc with healthy pink-orange coloration, diffuse pallor showing the entire disc pale white with a broad differential, and temporal pallor showing the temporal half of the disc pale while the nasal half remains pink, suggesting toxic, nutritional, or hereditary optic neuropathy

Warm-up

Which pattern most strongly suggests compressive optic neuropathy rather than typical optic neuritis?

Lesson

Optic Atrophy in 30 Seconds

Optic atrophy is optic disc pallor caused by loss of retinal ganglion cell axons. It is a sign, not a diagnosis. Localize the lesion, identify the cause, and remember that optic disc pallor usually develops over several weeks after axonal injury.

What Optic Atrophy Actually Means

Optic atrophy is a final common pathway. It reflects degeneration of retinal ganglion cell axons and may result from lesions anywhere along the anterior visual pathway, from the retina through the optic nerve, chiasm, optic tract, and lateral geniculate nucleus. Lesions posterior to the lateral geniculate nucleus rarely produce clinically significant optic atrophy except through chronic transsynaptic retrograde degeneration. Pallor takes weeks to appear after axonal injury, so an acute optic neuropathy may initially have a normal-appearing disc.

Reading the Pattern

Diffuse pallor reflects generalized retinal ganglion cell axon loss and has a broad differential.
Sectoral pallor suggests selective fiber bundle injury, such as from ischemic optic neuropathy.
Temporal pallor classically suggests papillomacular bundle disease, including toxic, nutritional, or hereditary optic neuropathy.
Band or bow-tie pallor is characteristic of chronic optic tract lesions, reflecting loss of nasal retinal fibers, and may also be seen after chronic chiasmal compression depending on the pattern of fiber loss.
Disproportionate pallor relative to cupping is a classic clue to nonglaucomatous optic neuropathy, so cupping accompanied by pallor exceeding what the cup would explain should raise concern for compression.

Quick Comparison

Disc Appearance	Suggests
Diffuse pallor	Generalized optic neuropathy
Temporal pallor	Toxic, nutritional, hereditary optic neuropathy
Sectoral pallor	Ischemic optic neuropathy, localized axonal injury
Band or bow-tie pallor	Optic tract lesion, chronic chiasmal disease in appropriate settings
Pallor greater than cupping	Nonglaucomatous optic neuropathy
Cupping greater than pallor	Typical glaucoma

4 Facts Exams Always Ask

Optic disc pallor typically develops over several weeks, often 4 to 6 weeks, after axonal injury.
OCT retinal nerve fiber layer and macular ganglion cell analysis objectively quantify axonal loss and are useful for both diagnosis and longitudinal follow-up.
Unexplained or bilateral optic atrophy requires a full evaluation, often including neuroimaging.
An RAPD supports unilateral or asymmetric optic nerve disease. A symmetric bilateral process may not produce an RAPD.

The Classic Trap

The common error is calling every pale, cupped disc glaucoma. Consider compressive, toxic, nutritional, hereditary, and inflammatory optic neuropathies. Cupping alone can occur in glaucoma. Pallor that exceeds what the degree of cupping would explain, combined with reduced color vision, decreased acuity, or a neurologic field pattern, should trigger concern for a non-glaucomatous, especially compressive, optic neuropathy.

Clinical Pearl

Pallor indicates established axonal loss, not necessarily active disease. A normal disc during acute visual loss does not exclude optic neuropathy. In retrobulbar optic neuritis, the disc may look normal initially, then develop pallor weeks later. Disc pallor reflects irreversible axonal injury, although treatment may still prevent additional vision loss by addressing the underlying cause.

Check yourself

Checkpoint 1

A patient with slowly progressive unilateral vision loss, optociliary shunt vessels, and optic disc pallor is found to have a mass on neuroimaging. Which tumor classically produces this triad?

Checkpoint 2

Foster Kennedy syndrome consists of optic atrophy in one eye with papilledema in the fellow eye. Which lesion classically produces this pattern?

Explanation

Foster Kennedy syndrome results from a frontal lobe mass, classically an olfactory groove or sphenoid wing meningioma, that directly compresses one optic nerve (causing optic atrophy) while simultaneously raising intracranial pressure enough to cause papilledema in the contralateral, uncompressed optic nerve. A 'pseudo-Foster Kennedy syndrome' can mimic this from sequential non-arteritic AION in each eye.

Clinical case

A 48-year-old patient has reduced acuity, dyschromatopsia, and a left RAPD. The left disc has marked pallor with moderate cupping. Automated perimetry shows a temporal hemianopic defect respecting the vertical midline. Intraocular pressure is normal. The patient was previously treated for glaucoma but visual loss progressed despite stable pressure.

What is the most appropriate next step?

Explanation

Progression despite stable intraocular pressure, an RAPD, dyschromatopsia, and pallor disproportionate to the degree of cupping all argue against typical glaucoma. This pattern warrants urgent neuroimaging to evaluate for a compressive lesion rather than escalating glaucoma therapy or continuing to monitor pressure alone.

Case discussion

This pattern is not typical glaucoma. The RAPD, dyschromatopsia, optic pallor disproportionate to the cupping, and a temporal field defect respecting the vertical midline indicate asymmetric optic nerve disease with possible chiasmal or optic tract involvement rather than glaucomatous progression. The next step is urgent neuroimaging to evaluate for a compressive lesion.

Sources & Reviewer Info

Reviewed by Vasilis Inglezis: Optometrist and Ocular Oncology Imaging Specialist, Ocular Oncology Center, Athens, Greece. Last updated July 27, 2026.

Diagram created with AI image generation, clinically reviewed for accuracy.

References

American Academy of Ophthalmology. Basic and Clinical Science Course, Section 5: Neuro-Ophthalmology.
Miller NR, Newman NJ, Biousse V, Kerrison JB, editors. Walsh and Hoyt's Clinical Neuro-Ophthalmology.
