Retinoscopy: Reflexes and Working Distance

Master retinoscopy reflexes, working distance correction, astigmatic meridians, and common NBEO and OKAP exam traps.

Reviewed for accuracyJuly 28, 20263 min read

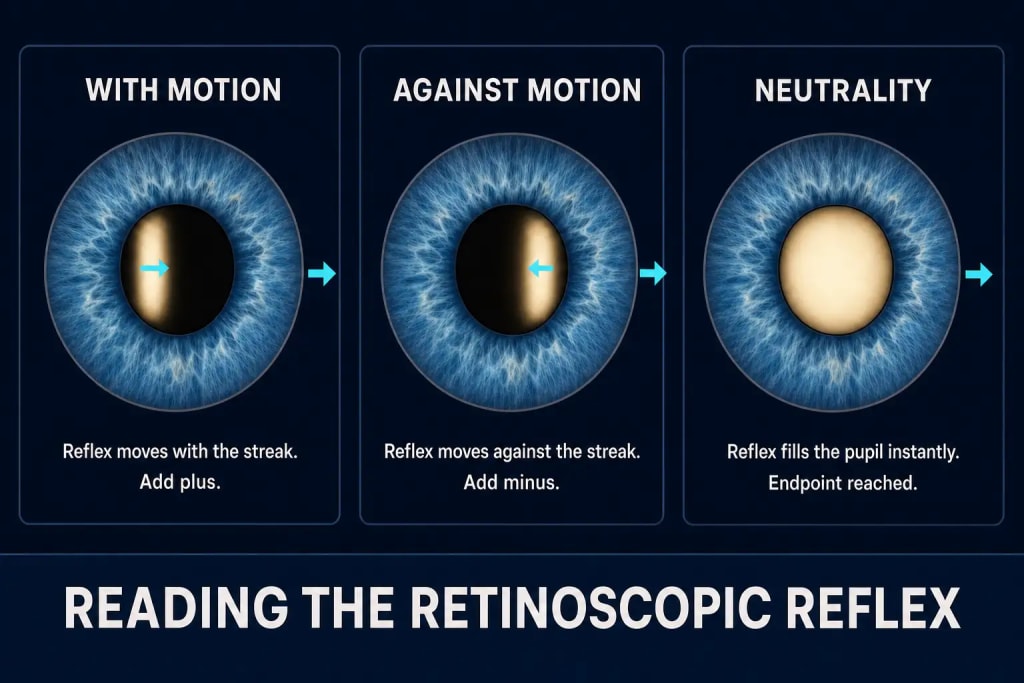

Three-panel diagram of the retinoscopic reflex: with motion showing the reflex moving in the same direction as the streak, prompting the examiner to add plus power, against motion showing the reflex moving opposite the streak, prompting the examiner to add minus power, and neutrality showing the reflex filling the entire pupil with no motion, marking the endpoint of retinoscopy

Warm-up

Why is a streak retinoscope particularly useful in astigmatic refraction?

Lesson

Retinoscopy in 30 Seconds

Retinoscopy objectively estimates refractive error by observing the pupillary reflex while changing lens power. For board questions, identify the reflex motion first, neutralize each principal meridian, then remove the working distance lens from the gross result.

How the Reflex Works

Retinoscopy uses movement of light reflected from the patient's retina, the retinoscopic reflex, to objectively measure refractive error. The working distance is the examiner's distance from the patient, expressed as a dioptric lens power. After neutrality is reached, subtract the working distance lens power, for example 1.50 D at 67 cm or 2.00 D at 50 cm, from the gross finding to obtain the net retinoscopic result.

Reading the Reflex

With motion: the reflex moves in the same direction as the streak. The far point lies behind the examiner. Add plus (or reduce minus) until neutrality is reached.
Against motion: the reflex moves opposite the streak. The far point lies between the examiner and the patient. Add minus (or reduce plus) until neutrality.
Neutrality: the reflex fills the pupil instantly with no observable motion. This is the endpoint for that meridian.
Brightness and speed: as neutrality is approached, the reflex becomes brighter, faster, and broader. Large refractive errors produce a dimmer, slower, narrower reflex.

4 Facts Exams Always Ask

Working distance subtraction is the most common calculation error. Gross neutrality is not the final refractive result.
A streak retinoscope helps locate and neutralize the principal meridians of astigmatism. A spot retinoscope provides a circular reflex and is less useful for determining the astigmatic axis than a streak retinoscope.
High astigmatism produces separate reflex behavior in two principal meridians. Neutrality is judged independently in each meridian, and in astigmatism one meridian typically reaches neutrality before the other.
A scissors reflex suggests irregular astigmatism, most classically keratoconus, although other causes of corneal irregularity may produce a similar finding.

The Classic Trap

The classic error is reporting the gross neutralization power as the final refraction. First neutralize the reflex at your chosen working distance. Then subtract the working distance lens power. With motion does not always mean hyperopia. It simply means additional plus (or less minus) is needed to reach neutrality at the chosen working distance.

Clinical Pearl

When the reflex does not neutralize cleanly in one meridian and appears to split or scissor, do not force a regular sphero-cylinder answer. Think irregular astigmatism and correlate with keratometry, corneal topography, and slit-lamp findings.

Check yourself

Checkpoint 1

In static retinoscopy, once neutrality is reached, the working distance lens must be:

Checkpoint 2

During retinoscopy, a with-motion reflex is seen along a principal meridian. To move toward neutrality, the examiner generally adds:

Clinical case

At a 67 cm working distance, you reach neutrality in the 180-degree principal meridian with +2.00 D and in the 90-degree principal meridian with +4.00 D. The reflex is bright and fast at neutrality in both meridians.

What is the final retinoscopic refraction in minus-cylinder form?

Explanation

A 67 cm working distance equals +1.50 D. Subtracting +1.50 D from each gross finding gives a net power of +0.50 D in the 180-degree meridian and +2.50 D in the 90-degree meridian. The more plus principal meridian becomes the sphere in minus-cylinder notation, so sphere is +2.50 D at axis 090, with the cylinder equal to the difference between the two meridians, -2.00 D.

Case discussion

In minus-cylinder notation, the more plus principal meridian becomes the sphere. Therefore, the final retinoscopic result is +2.50 -2.00 x 090.

Sources & Reviewer Info

Reviewed by Vasilis Inglezis: Optometrist and Ocular Oncology Imaging Specialist, Ocular Oncology Center, Athens, Greece. Last updated July 28, 2026.

Diagram created with AI image generation, clinically reviewed for accuracy.

References

American Academy of Ophthalmology EyeWiki. "Retinoscopy."
StatPearls (NCBI Bookshelf). "Objective Refraction Technique: Retinoscopy."
Moran CORE, University of Utah. "Objective Refraction Techniques: Retinoscopy."
EntoKey. "Clinical Refraction."
