Mastering the Duochrome Test

Learn how the duochrome test, or red-green test, fine-tunes spherical refraction using chromatic aberration for sharper, exam-ready prescriptions.

Reviewed for accuracyJuly 28, 20263 min read

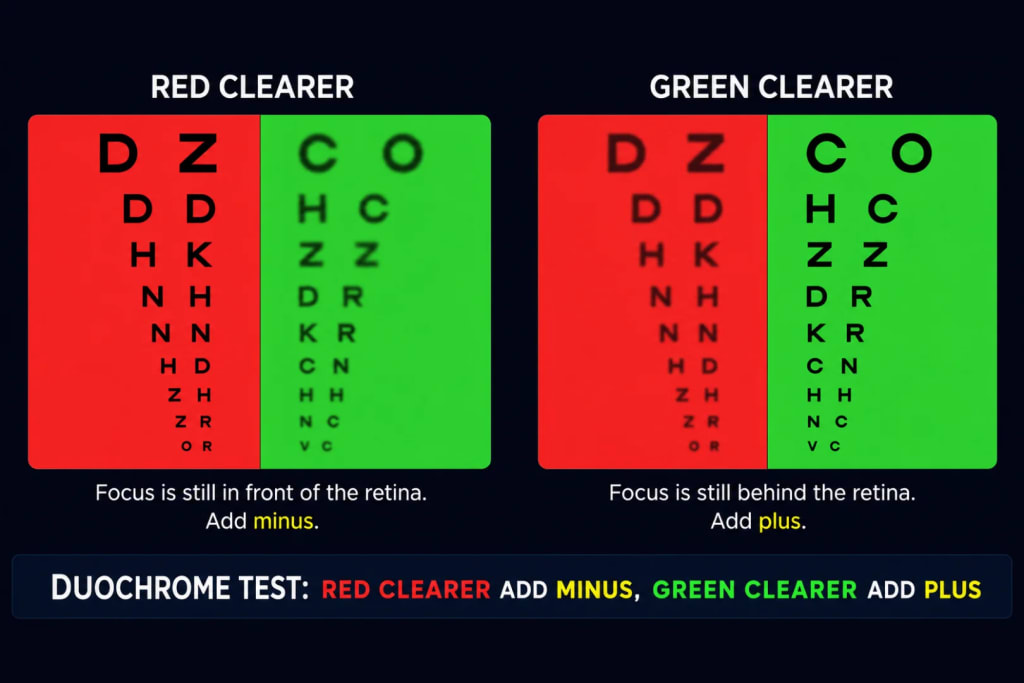

Two-panel diagram of the duochrome test direction rule using a split red-green chart: the red-clearer panel shows sharper letters on the red half, indicating the eye is still focused in front of the retina and needs more minus power, while the green-clearer panel shows sharper letters on the green half, indicating the focus is still behind the retina and needs more plus power

Warm-up

Chromatic aberration occurs because different wavelengths of light are:

Lesson

Duochrome Test in 30 Seconds

The duochrome test, also called the red-green test, is a subjective refinement step for spherical power at the end of refraction. It uses the eye's longitudinal chromatic aberration to balance the focus of red and green stimuli so the final endpoint is very close to the circle of least confusion.

The Optical Principle Behind the Test

The duochrome test uses chromatic aberration. For a given accommodative state, shorter wavelength green light focuses slightly in front of longer wavelength red light in the same eye. This fixed difference means that whichever color's focal point sits closer to the retina will look clearer, and that comparison depends only on relative clarity, not on normal color naming.

Reading the Patient's Response

If the eye is well corrected with the test sphere in place, letters on red and green appear equally clear. Many clinicians accept a slight residual green preference as the endpoint instead of forcing exact equality.
If letters on the red background look clearer, the eye's focus is still slightly in front of the retina, a residual myopic direction error. Add minus sphere, or reduce plus, to move focus back onto the retina.
If letters on the green background look clearer and will not balance with reasonable plus, the eye's focus is still slightly behind the retina, a residual hyperopic direction error. Add plus sphere, or reduce minus, to move focus forward onto the retina.
This is the classic direction rule: red clearer means add minus, green clearer means add plus. The duochrome test refines an existing spherical endpoint. It does not determine the initial refraction from scratch.

4 Facts Exams Always Ask

Classic instruction and endpoint: add plus or minus sphere in small steps until the letters on red and green backgrounds look equally clear, or the patient reports a slight preference for green.
Perform the duochrome test only after you have already neutralized the main refractive error with standard subjective refraction, including best sphere and cylinder.
The test becomes less reliable in patients with significant red-green color vision deficiency, since they may struggle to make consistent relative clarity judgments.
The test also becomes less reliable with advanced age or dense cataract, where reduced retinal illuminance and altered spectral transmission make small clarity differences hard to detect.

The Classic Trap

A common exam mistake is forgetting the direction rule and moving the sphere the wrong way, or treating duochrome as a standalone method to find the full refraction from scratch. The correct reasoning: red clearer means the eye still needs more minus, and green clearer means the eye still needs more plus. Reach a conventional subjective endpoint first, then use duochrome only to fine-tune the sphere.

Clinical Pearl

The accepted duochrome endpoint is not always perfect red-green equality. Many clinicians deliberately stop with a slight green preference remaining, favoring a small residual myopic bias over any hint of excess plus, since young patients can comfortably accommodate through slight undercorrection but cannot compensate for overplussing, which causes blur they cannot accommodate away.

Check yourself

Checkpoint 1

During duochrome testing, if letters on the red background appear clearer than the green, what adjustment is indicated?

Checkpoint 2

When should the duochrome test be performed during a refraction?

Clinical case

A 24-year-old student has a subjective endpoint of -3.50 sphere in both eyes with 20/20 acuity. On duochrome, she reports that letters on the green side remain noticeably clearer than the red, and adding +0.25 sphere makes both sides equally clear.

What is the most appropriate final sphere power?

Explanation

Green being clearer than red means the eye's focus is still slightly behind the retina, a residual hyperopic direction error, so more plus is needed. Adding +0.25 D to the -3.50 D endpoint gives -3.25 D, which balances red and green and moves the focus onto the retina.

Case discussion

Since the endpoint favors green, the eye needs slightly more plus. Adding +0.25 D gives a final sphere of -3.25 D, balancing red and green and confirming a well-corrected endpoint.

Sources & Reviewer Info

Reviewed by Vasilis Inglezis: Optometrist and Ocular Oncology Imaging Specialist, Ocular Oncology Center, Athens, Greece. Last updated July 28, 2026.

Diagram created with AI image generation, clinically reviewed for accuracy.

References

American Academy of Ophthalmology EyeWiki. "Duochrome Test."
StatPearls (NCBI Bookshelf). "Subjective Refraction Technique: Duochrome Test."
