Prism Diopter and Prentice's Rule: Exam Guide
Learn prism diopters and Prentice's rule for spectacle lens decentration. Practice base direction, induced prism, and board-style calculations.
One prism diopter is defined as a prism that displaces an image by:
Prism Diopter and Prentice's Rule in 30 Seconds
A prism diopter is the standard unit used to measure prismatic deviation. Prentice's rule calculates prism induced when a line of sight passes away from a spectacle lens optical center. Use it to solve decentration, unwanted prism, and prescribed prism problems on board exams.
What a Prism Diopter Measures
A prism diopter, written as Δ, is the unit of prismatic deviation. One prism diopter displaces the apparent image 1 cm at a viewing distance of 1 m. Prism direction is named by the thick edge, called the base: base-in, base-out, base-up, or base-down. Light bends toward the base. The image displaces toward the apex.
Prentice's Rule and Decentration
- Prentice's rule: Δ = F × c.
- Δ is induced prism in prism diopters. F is lens power in diopters. c is decentration in centimeters.
- A lens produces no prism at its optical center. Looking through any point away from the optical center creates prism.
- This matters when a patient's line of sight does not pass through the optical center of their spectacles.
- Combine multiple prism sources with vector addition when they act on different axes. Examples include a powered lens, an add power, and intentionally prescribed prism.
4 Facts Exams Always Ask
- Prentice's rule is Δ = F × c. Use diopters for F and centimeters for c.
- Deliberately shifting the lens optical center relative to the patient's line of sight can induce therapeutic prism without ordering ground-in prism.

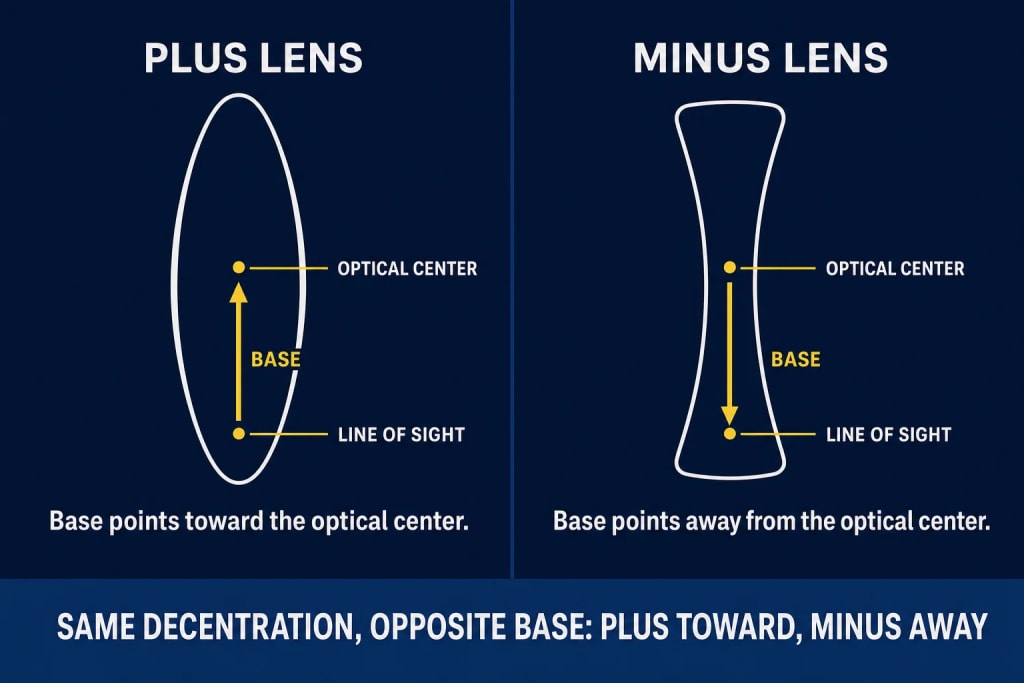

- The same decentration direction produces opposite base effects in plus and minus lenses.
- Resolve oblique prism or prism from misaligned optical centers into horizontal and vertical components. Do not simply add magnitudes.
The Classic Trap
Do not confuse lens decentration with induced base direction. First locate the patient's line of sight relative to the lens optical center. A plus lens induces base prism toward its optical center. A minus lens induces base prism away from its optical center. Then apply Prentice's rule using the absolute lens power and decentration magnitude.
Clinical Pearl
First determine where the patient's line of sight passes relative to the optical center. Then determine the base direction using the plus or minus lens rule before calculating prism magnitude. Prentice's rule calculates only the magnitude of induced prism. Determine base direction separately using the lens type and the location of the optical center relative to the line of sight. This approach works for both horizontal and vertical decentration.
Checkpoint 1
According to Prentice's rule, what prism is induced by decentering a 4.00 D lens by 5 mm?
Checkpoint 2
Prentice's rule relates prismatic effect to lens power and:
A patient wears a -5.00 D lens in the right eye. Their line of sight passes 4 mm temporal to that lens's optical center.
What is the induced prism?
